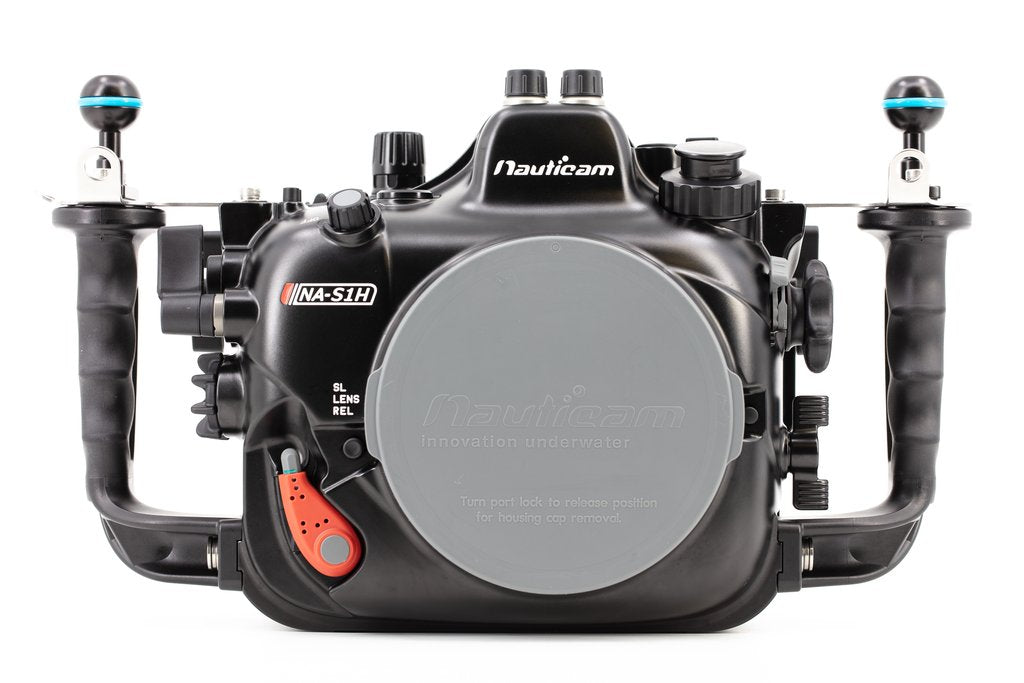

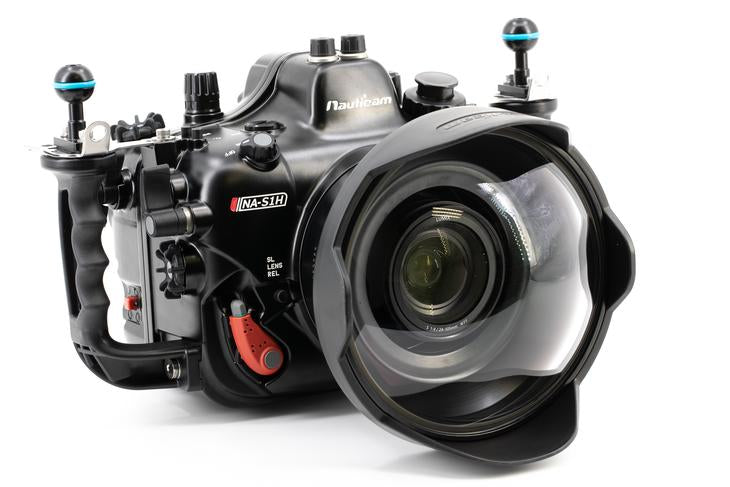

Nauticam NA-S1H Housing for Panasonic Lumix DC-S1H (incl. vacuum valve)
INTRODUCING NA-S1H
THE PANASONIC LUMIX DC-S1H CAMERA
The Panasonic S1 brought many of the features that made the GH series of micro-four-thirds cameras popular with underwater image-makers to a full-frame sensor. With the S1H, Panasonic has taken some of it's VariCam cinema-tech and added it to already strong video capabilities of the S1 platform. The most notable is the ability to record 6K in a 3:2 aspect ratio at 24p (or 5.9K, 30p at 16:9) at a reported 14+ stops of dynamic range. If 60p is important, the S1H will also capture C4K/UHD4K at 60p in 4:2:2 10-bit internally.
The S1H is scheduled to be release Fall 2019 and more specifications will be available at a later date.
THE NAUTICAM NA-S1H UNDERWATER HOUSING
As the S1H is an evolution of the mirrorless camera, the NA-S1H is the progression of Nauticam's innovative approach to housing design and construction. As the capabilities of the cameras housed within increases, so must the housing itself. The NA-S1H is a perfect compliment to the S1H camera and is designed to take full advantage of the S1H's advanced video capabilities.
EF AND L LENS SUPPORT
Sigma's MC-21 EF to L adapter allows for the use of Sigma EF-mount lenses to be used with the S1H camera. The NA-S1H Housing is designed to not only accommodate the adapter but to allow for the use of the existing focus and zoom gears for Canon EF-mount Sigma lenses for the N120 Canon System along with the existing Canon N120 extension ring and port combinations for those lenses. As native L-mount lenses become available, those best suited to underwater use will be added to the system.
MISSION CONTROL
The NA-S1H follows Nauticam's Mission Control design philosophy that emphasizes placing the control where it is needed most, regardless of where it may be on the camera itself. This has led to housings where the majority of essential controls can be easily reached from the ergonomic handles. The use of thumb-levers allows for the manipulation of many controls without having to remove your hand from the handle which leads to more time spent focusing on the shot and less time looking for a control.

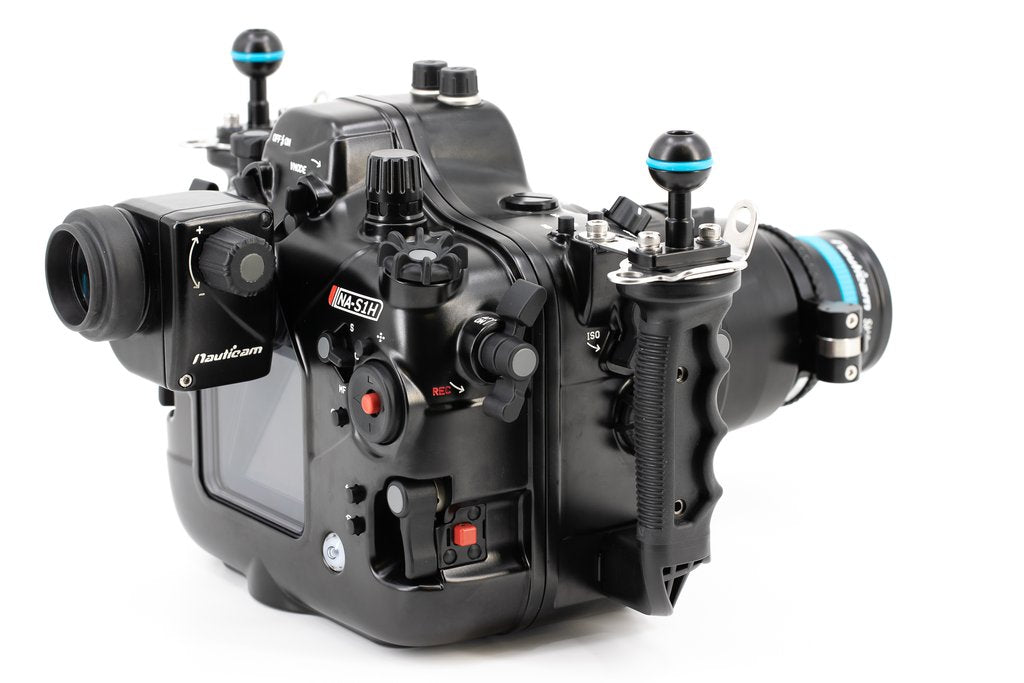

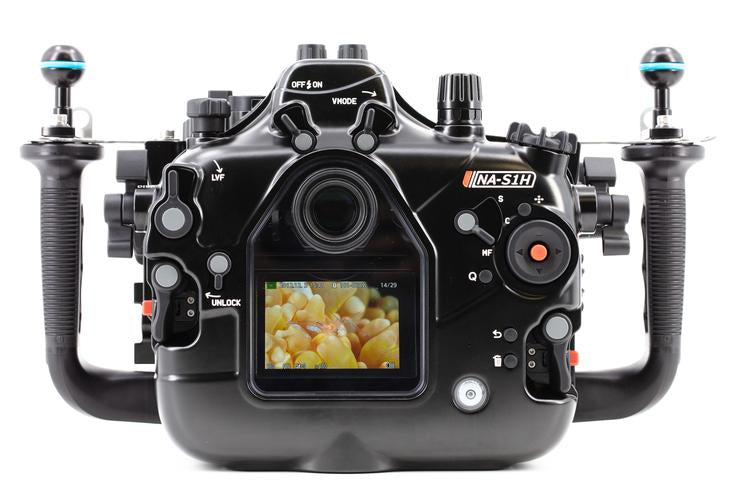

The NA-S1H features dual thumb levers on both the right and left rear of the housing. The left side activates Playback and DISP buttons while the right controls AF-ON and REC. An inner lever on each side adds additional functionality with ISO for the front right and LVF on the left rear. A multi-position switch on the rear of the housing accesses C/M/AF and is located next to the multi-directional pad.
HDMI 2.0
The NA-S1H features the large-bore M28 bulkhead that supports HDMI 2.0 video output connections to external recorders/monitors such as the Atomos Ninja V and Shogun Inferno with the optional Nauticam HDMI 2.0 cables and monitor housings. An HDMI 1.4 option is also available for those monitor housings that do not feature the M28 bulkhead.
RESOURCES
SUPPORT & DOWNLOADS
RESOURCES
What's In The Box
- NA-S1H Housing with M16 Vacuum Valve II (Pushbutton Release)
- Housing O-ring, lubricant and removal tool
- CR2032 Battery (for vacuum system)
- Padded Travel Case
- Allen Wrench Set
Recommended Accessories
- 32201 Nauticam 180˚ viewfinder
- 32203 Nauticam 45˚ viewfinder
- 26309 Mini Flash Trigger for NA-GH5/G9 Housing
- 25218 Mounting ball set for tripod legs (FOR NA-A9/A7RIII, NA-BMPCCII, NA-XT3) –production version.
- 28130 Hand Strap for 28113 (For NA-1DXII/D500/D5/80D/A9)
- 90222 Housing O-ring (I.D.=220mm, C.S.=4.0mm) for NA-S1R
--for use with Atomos Ninja V (HDMI 2.0) Recorder/Monitor
- 25078 M28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/S1R/S1H to use with 17922/17909N)
- 17922 Nauticam Atomos Ninja V housing (HDMI 2.0) for Atomos Ninja V 5” 4Kp60 4:4:2 10-bit Recorder/Monitor/Player
--for use with Atomos Shogun/Ninja Inferno (HDMI 2.0) Recorder/Monitor
- 25078 M28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/S1R/S1H to use with 17922/17909N)
- 17909N Nauticam Atomos Flame Housing
- (for HDMI 2.0 input) for Atomos Ninja Flame/Shogun Flame/Shogun Inferno 7'' 10-bit 4K/HD SDI / HDMI Recorder/Monitor/Player
- 17951 Nauticam Atomos Shogun/Flame housing mounting system
- 17953 Nauticam Atomos Shogun/Flame housing mounting adaptor for NA-GH4/GH5
- 17954 Tripod plate for NA-A7/A7II/GH4/GH5
- 17956 Mounting adaptor for 17953 to use with NA-S1R
