INON AD Lens Holder

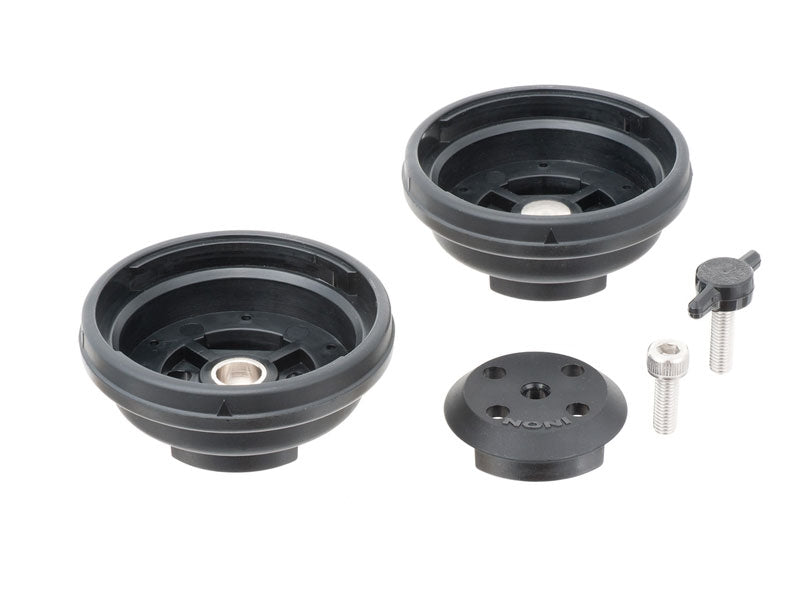

■AD Lens Holder
A lens holder attached on an Arm etc. to carry AD series/28AD series attachment lens. Compatible product is sandwiched between Lens Holder [screw] and Lens Holder [hole], or Lens Holder [screw] and Lens Holder Base of this product. The Lens Holder [hole] is usable as like "AD Lens Holder for Float Arm" as well.
Usable to hold SD Mount series attachment lenses for GoPro® as well.
■Weight:
●When attached on single side
38g (1.3oz) [air] / approx.12g (0.4oz) [underwater]
●When attached on both sides
57g (2.0oz) [air] / approx.18g (0.6oz) [underwater]
■Compatible arm/base
●Installed with Lens Holder [screw] and Lens Holder [hole]
- Arm SS/S/M/L
- YS Arm MS/M
●Installed with Lens Holder [screw] and Lens Holder Base
- Arm SS/S/M/L
- YS Arm MS/M
- Grip Base D4 (optional D Holder Extension Bar is necessary.)
- Grip Base M1 (optional D Holder Extension Bar is necessary.)
- D Holder (optional D Holder Extension Bar is necessary.)
- Grip Base DIII w/ Rubber Grip D
- Grip Base DII w/ Rubber Grip D
●Installing Lens Holder[hole] by a screw
- Float Arm S/M/ML
- Mega Float Arm S/M
- M5 Joint + Stick Arm SS-T/S-T/M-T/L
- M5 Joint + Multi Ball Arm ML/L/LL/XL
- Mega Float Tube S/M

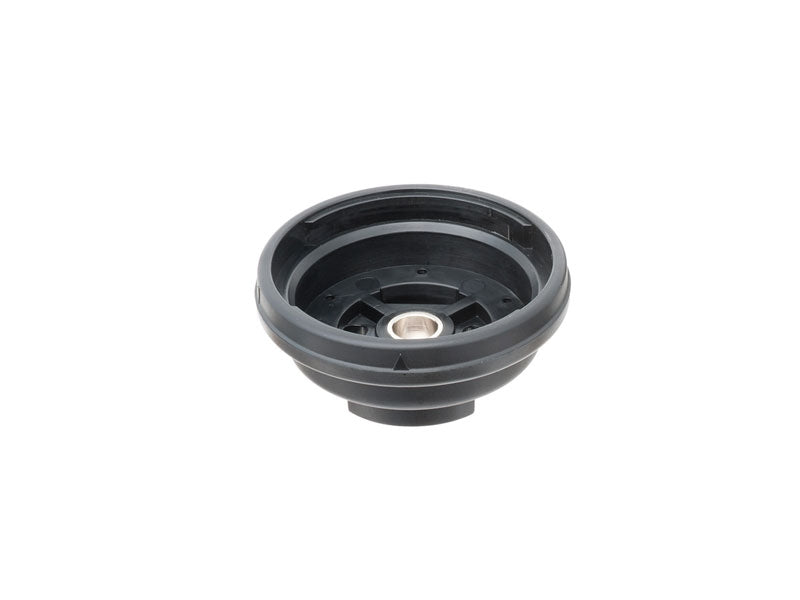

■AD Lens Holder for Float Arm
A lens holder attached on a Float Arm/Mega Float Arm/Mega Float Tube or on the "M5 Joint" installed on Stick Arm/Multi Ball Arm (*1) to carry AD series/28AD series attachment lens to help comfortable multiple lens handling underwater. The lens holder is screwed on an arm or M5 Joint through center screw hole.
Usable to hold SD Mount series attachment lenses for GoPro® as well.
(*1) "Multi Ball Arm SS" is not compatible with the "M5 Joint". "Stick Arm XS-T" and "Multi Ball Arm S" can hold the "M5 Joint" but not compatible with a lens holder.
■Weight: 26g (0.9oz) [air] / approx.6g (0.2oz) [underwater]
■Compatible arm
- Float Arm S/M/ML
- Mega Float Arm S/M
- M5 Joint + Stick Arm SS-T/S-T/M-T/L
- M5 Joint + Multi Ball Arm ML/L/LL/XL
- Mega Float Tube S/M
