Carbonarm Housing for Insta360 Ace Pro

Underwater housing for Insta360 Ace Pro and Ace Pro 2, 100% MADE in Italy, produced by Carbonarm for over 10 years, operational up to -250 m depth, direct support worldwide and lifetime warranty.

The Insta360 Ace Pro 2 features a larger sensor, providing optimal lighting even underwater for sharper and more detailed images. To adapt to the larger sensor size, Inon has developed the ZD wide-angle and macro lenses with an increased diameter. To get the most out of your footage, we recommend using the Inon ZD lenses available on our website.

Before inserting the camera into the housing, remove the microphone windscreen and the rubber ring on the lens edge (if present). Instead, insert the standard microphone cap included in the package to properly protect the sensor from humidity and ensure full compatibility with the housing.

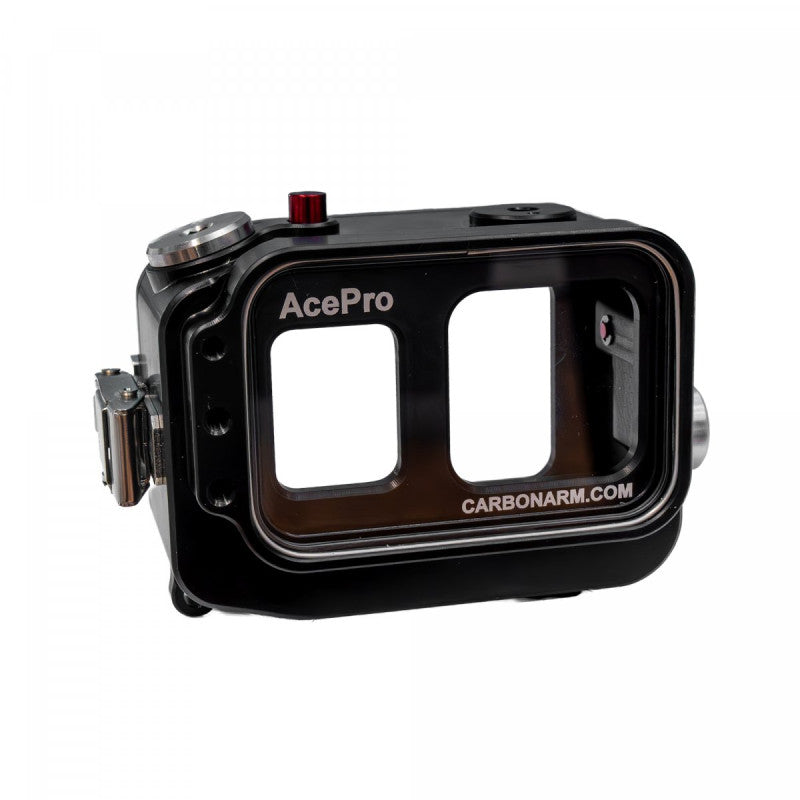

Underwater housing in anodized aluminum (50 μm military treatment), designed to fit the Insta360 Ace Pro and Ace Pro 2. It ensures professional resistance up to 250 m depth, equipped with double O-rings, anti-corrosion zinc insert, side hinge easy to use even with gloves, enlarged front window for a more comfortable view, and multiple mounting points for accessories such as trays, arms and lights.

It can be used not only underwater but also on the surface, to protect the action cam during shooting in extreme environments such as rough seas, snow, dust or accidental impacts.

Unlike plastic housings, the aluminum structure prevents condensation and always guarantees clear, fog-free footage.

Ideal for safe and high-performance underwater shooting, both amateur and professional, and highly appreciated by content creators worldwide.

Main Features:

• Versatility: compatible with Insta360 Ace Pro and Ace Pro 2
• Before inserting the camera into the housing, remove the microphone windscreen and the rubber ring on the lens edge (if present). Instead, insert the standard microphone cap included in the package to properly protect the sensor from humidity and ensure full compatibility with the housing.
• Wide accessory compatibility: customize your setup with trays, grips, arms, floating arms, lights, DPV mounts, macro and wide lenses, color filters. We recommend the Inon ZD lenses, available on our website, as they are particularly suited for the larger sensor of this action cam.
• Depth rating: guaranteed to 250 m
• No condensation: prevents fogging and ensures clear footage
• Durability: made of aluminum with 50 μm military anodization, resistant to wear and saltwater corrosion

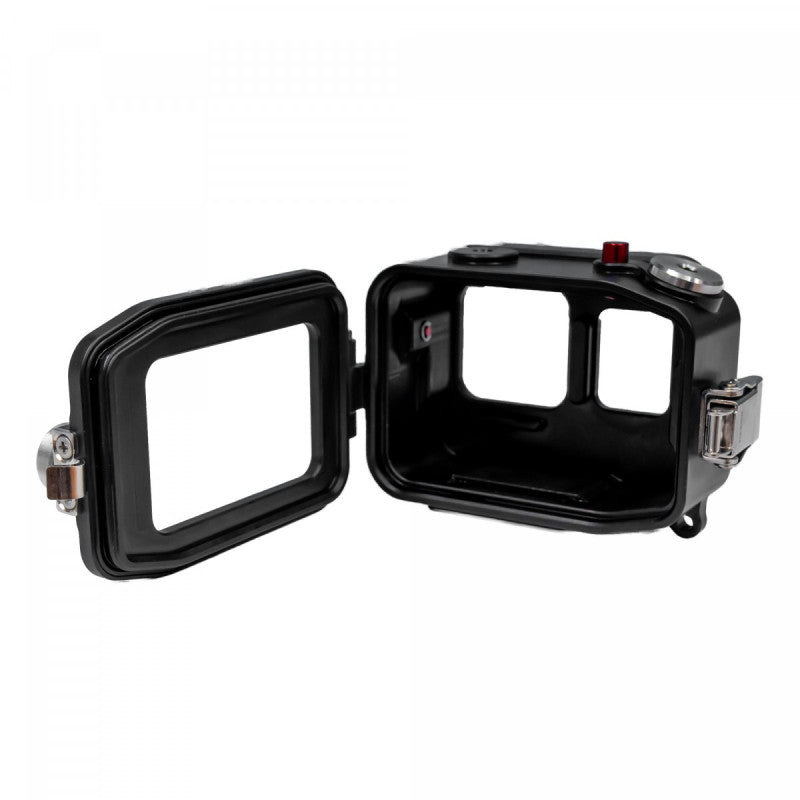

• Ergonomic and practical: side hinge allows easy opening and closing even with dive gloves
• Waterproof seal: double O-ring ensures safe protection from leaks
• Anti-corrosion: zinc insert protects against galvanic corrosion
• Mounting points:
• Top: threaded M6 blind hole and locking pin for attaching an SF/M6 ball mount (arms/lights)
• Bottom: two M6 holes + two Kodak standard holes for mounting trays and accessories
• Cap with port for external battery pack and Wi-Fi antenna cable

Why choose it?

• Lifetime warranty (more information in the "Maintenance & Warranty" section)
• Direct support worldwide
• Reliability: over 10 years of Carbonarm expertise in designing and building robust housings and accessories for underwater imaging. Your Insta360 Ace Pro is completely safe in a Carbonarm housing.
• Top performance: perfect for professional and amateur underwater video. Widely used by content creators, both at depth and on the surface, to protect the Insta360 Ace Pro from water, shocks and scratches and avoid condensation issues.
• Versatility: ready-to-use housing  and easily integrated with countless accessories for a fully customized setup.
