AOI VWS-01-M16 Vacuum Analyzer and Wet Detection System for Waterproof Housing
IDR 2,470,000.00
IDR 2,190,000.00

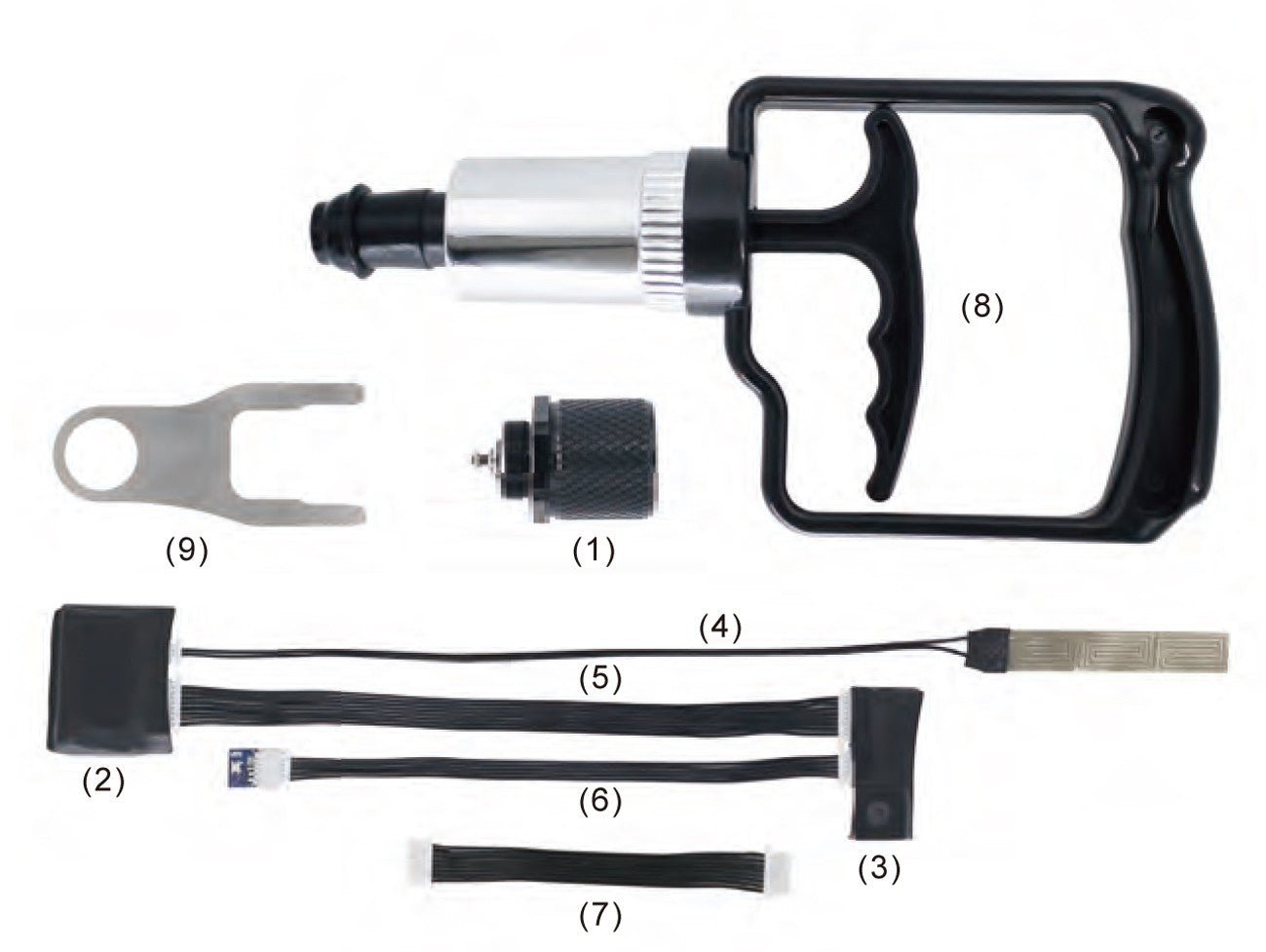

MODEL VWS-01-M16 Description Vacuum Analyzer and Wet Detection System for Waterproof Housing (1) M16 VACUUM VALVE Valve Material Black Anodized Aluminum Alloy Valve Working Depth 100M / 330Ft Valve Dimension Ф 24 X 35mm Valve Weight 22.1 grams (2) MAIN UNIT Vacuum Analyzing Time 4 minutes (one time analyze only)...
| MODEL | VWS-01-M16 | |
| Description | Vacuum Analyzer and Wet Detection System for Waterproof Housing | |
|
(1) M16 VACUUM VALVE |
Valve Material | Black Anodized Aluminum Alloy |
| Valve Working Depth | 100M / 330Ft | |
| Valve Dimension | Ф 24 X 35mm | |
| Valve Weight | 22.1 grams | |
| (2) MAIN UNIT | Vacuum Analyzing Time | 4 minutes (one time analyze only) |
| Wet Detection | All The Time | |
| Power Source | 3.7V 110mAh Lithium Polymer Rechargeable Battery | |
| Operation Time Per Full Charge | 4 days (continual operation) | |
| Charging Time | 45 minutes | |
| Charging Current | 0.3 A | |
| Main Unit Dimension | 28 mm (L) X18 mm (W) X7 mm (H) | |
| Main Unit Weight | 5.3 grams | |
|
(3) SIGNALING & |
Alarm Signal Output |
Audio Signal : by Piezo Buzzer |
| Power Switch | Sliding ON / OFF Switch | |
| Charging Port | 5V Micro-USB charging port | |
| Signaling & Charging Unit Dimension | 30 mm (L) X14 mm (W) X7 mm (H) | |
| Signaling & Charging Unit Weight | 2.8 grams | |
| (4) WET SENSOR STRIP | Sensor |
Flexible Printed Circuit Board |
|
(5)(7) CONNECTION CABLES |
(5) Connection Cable Length | 140 mm |
| (7) Connection Cable Length | 75 mm | |
| ACCESSORIES | (6) Additional Visual Alarm Output (Tri-color LED) | |
| (8) Vacuum Pump | ||
| (9) Wrench for the Valve fastening | ||
