Remove the cap of the vacuum valve. Connect the hand pump to the valve and pump several times until it reaches the target vacuum level. The LED light will turn flashing yellow while vacuum is building up, then steady green when the target vacuum level is reached.
Attention: After the target vacuum is reached, i.e. steady green light, attach the cap back to the vacuum valve.
It is recommended to leave the housing for at least 20mins to ensure it is sealed. If the LED light changes from steady green light to rapidly flashing yellow light, that means there is a leakage and please check every O-ring and conduct the vacuum test again.
Please ensure that the cap is attached back to the vacuum valve before going underwater.
Vacuum can be released by pushing the red release button.
Attention: Please DO NOT attempt to go over the designated vacuum level, i.e. stop pumping when the LED turn green. Excessive vacuum level may lead to the malfunction of the camera and lens.
Note: Although the vacuum indicator is designated to compensate for a certain amount of temperature variation, it is recommended to conduct the vacuum test in an environment where the temperature is stable.
Other vaccum valves and accessories:

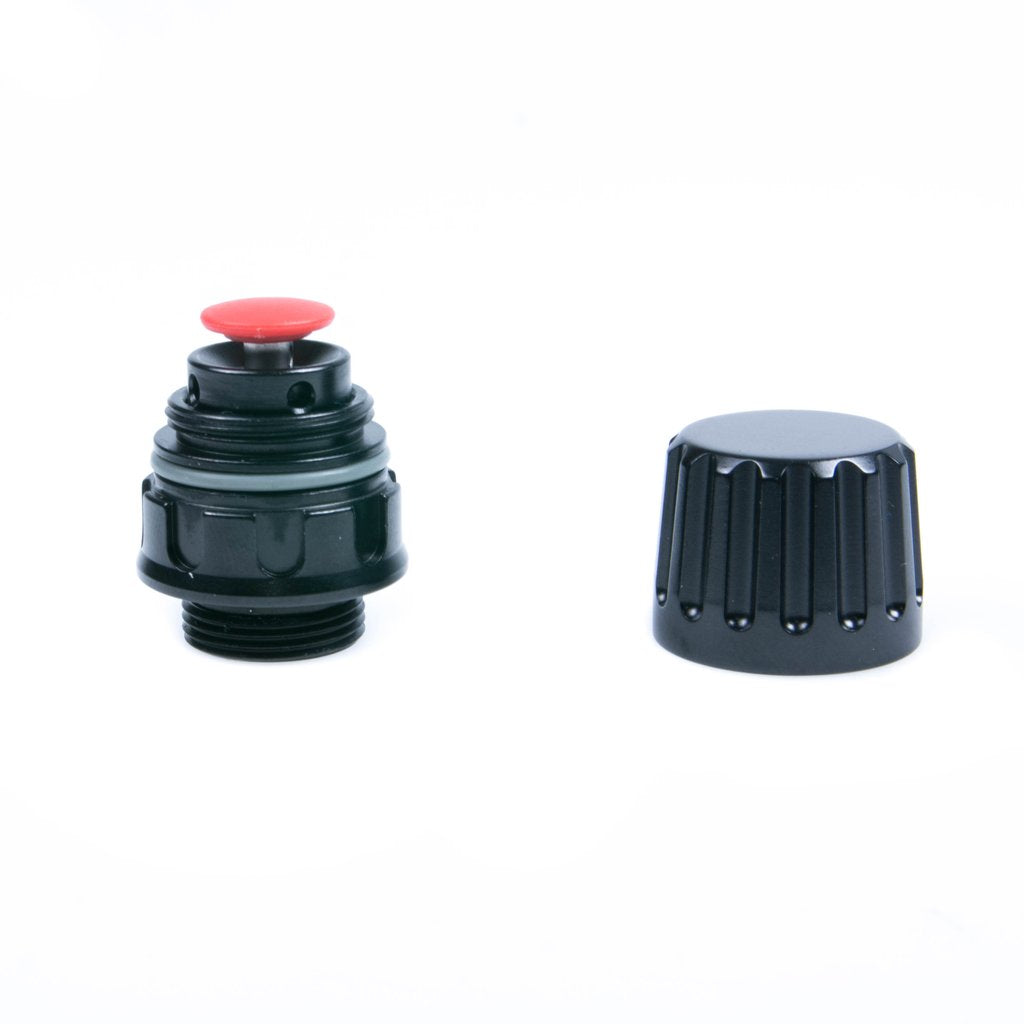

#25624 M14 Vacuum Valve II (Pushbutton Release)
#25625 M16 Vacuum Valve II (Pushbutton Release)
#25626 M14 Offset Connector with Vacuum Valve II (Pushbutton Release)
#25627 M16 Offset Connector with Vacuum Valve II (Pushbutton Release)
#25632 Hand pump for vacuum valve
#25638 Vacuum Valve Cap for 25624/25625/25626/25627
#25639 Fastening Tool for 25624/25625
After set up, the meaning of the LED indicator in the housing:
|Flashing “Blue” light
||Standby mode. The moisture alarm is active, and the system is ready for vacuum indication whenever a vacuum is detected.
|Flashing “Red” light with beeping sound
||Moisture is detected.
|Flashing “Yellow” light
||Some vacuum is detected, target vacuum level is not reached.
|Steady “Green” light
||Target vacuum level is reached.
|Rapidly flashing “Yellow” light
||Vacuum is dropping. (Will occur only after target vacuum level is reached)
|Rapidly flashing “Red” light
||Vacuum is totally lost. Circuit stalled until switched off. (Will occur only after target vacuum level is reached)
