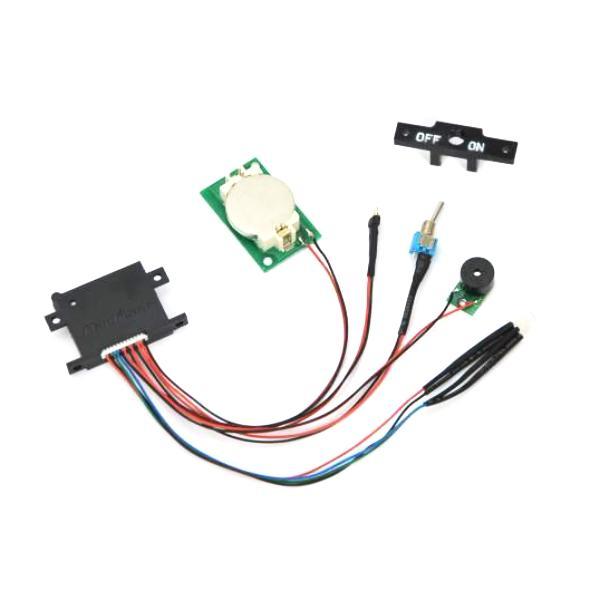

Nauticam Vacuum Detection/Moisture Alarm PCB set(incl. on/off switch and mount, buzzer, moisture sensor, CR2450 battery holder and 4 colour LED; 2pcs Panasonic CR 2450 batteries incl.)
Nauticam is pleased to announce an exceptionally comprehensive vacuum system that allows the underwater photographer to confirm watertight integrity before entering the water. This system provides additional peace of mind with expensive camera equipment and should mean fewer lost dives due to minor equipment issues. The system is comprised of two parts, a one way vacuum valve and an electronic monitoring circuit.
The electronic monitoring circuit is compactly integrated into the housing’s leak detector, where it constantly measures the vacuum level and reports its status via a multi-color LED easily visible on the rear of the housing. This sophisticated circuit has an advanced temperature compensation capability, so changes in ambient temperature or changes in internal temperature won’t cause a false positive.
Starting with NA-70D for Canon 70D, all new Nauticam DSLR and Mirrorless Interchangeable Lens Camera housing models will ship with the electronic monitoring circuit installed as standard equipment. Vacuum valves are sold as optional equipment, allowing the user to customize the housing accessory configuration as needed. Understanding the LED color codes is very easy. At ambient pressure, the LED slowly blinks blue. When a solid vacuum is achieved, the LED changes to a solid green, indicating system integrity. If the vacuum starts to degrade, the LED begins to flash yellow, and if water intrusion is detected, the LED flashes red, and the audible alarm is sounded.
|16108||Nauticam Epic LT for Red Epic & Scarlet (N120 Port, SmallHD502)|
|16109||Red Weapon LT Housing|
|16113||Nauticam C200 Housing for Canon EOS C200 Digital Cinema Camera|
|16114||Nauticam NA-EVA1 Housing|
|16131||Digital Cinema System for Red Epic & Scarlet|
|16132||PL Mount Red Housing for RED TOUCH 7 inch LCD|
|16133||Digital Cinema System for ARRI ALEXA Mini Camera|
|16134||Digital Cinema System for Red DSMC2(N200 Port)|
|16229||DSMC2 REDTOUCH 4.7 Monitor Back for 16109 Weapon LT|
|17215||NA-D7100 Housing for NikonD7100 Camera|
|17316||NA-1DX housing for Canon 1DX Camera|
|17321||NA-1DXII Housing for Canon EOS 1DX MarkII Camera|
|17410||NA-A7 Housing for Sony A7/A7r Camera|
|17411||NA-A5000 housing for Sony A5000camera|
|17414||NA-A7II housing for Sony A7 II/A7IIR camera|
|17708||NA-GX7 Housing forPanasonicLumixGX7camera|
|17709||NA-GH4 housing for PanasonicLumixGH4camera|
|17713||NA-GH5 housing for Panasonic Lumix GH5 camera|
|17806||NA-EM1 housing for Olympus OM-D E-M1 camera|
|17809||NA-EM5II housing for Olympus OM-D E-M5 II camera|
|17414NB||NA-A7II housing for Sony A7 II/A7RII camera (No electrical bulkhead)|
Retrofits for existing housings are available starting November 4, 2013. Contact your local Nauticam dealer for details.
The second component of this system is a one way vacuum valve, which is available in several styles to support various housing configurations. These Vacuum Valves contain an integrated vacuum release, and a redundant waterproof cap. No tools are required to open the housing after creating a vacuum, as the vacuum is released with a simple knurled nut.
The basic valve uses a hand pump to create the vacuum, but a more advanced Dual Activation vacuum valve is also available. The Dual Activation Valve accepts a BCD Low Pressure Inflator Hose quick disconnect, and uses tank pressure to create a Venturi effect that pulls the vacuum. This is recommended for housings like Nauticam’s DCES for RED EPIC and SCARLET where the internal volume of the housing makes using a hand pump impractical.
“Offset” Extension Valves are used when a housing has a single accessory hole, but requires both a Vacuum Valve and electrical bulkhead to be installed in the same location. This will enable most housings to be able to utilize this valuable tool.
All vacuum valves also include a hand pump and spanner tool for installing valves.
THE BOTTOM LINE
This new system is the most advanced integrity check system available today, and the only one with integrated leak detection and temperature compensation. With it’s intuitive multi-colored LED status codes, the underwater photographer can now be assured with a simple glance that the watertight integrity of the housing is secure.1
